LK-D-SS-18-T Series Optical Tundha Line & Optical Simulator
- Bandwidth nganti 18GHz
- Jangkauan dinamis sing dhuwur
- Aplikasi suhu sing wiyar
- Tanggepan amplitudo kurang
- Wektu tundha sing disesuaikan
Product Description
Nggunakake teknologi canggih Microwave-Photonics, garis tundha optik seri LK-D-SS-18-T lan simulator optik nawakake kinerja sing ora ana tandhingane ing spektrum aplikasi, kalebu tes radar, pangolahan sinyal, operasi antena array bertahap, simulasi antena, lan analisis gangguan fase. Sistem canggih iki dirancang kanggo makarya kanthi lancar ing kabeh pita frekuensi S / C / X / Ku, ditondoi kanthi mundhut selipan minimal, rentang dinamis sing ekstensif, isolasi elektromagnetik sing kuat, lan kemampuan kanggo nangani sinyal transit triple sing ora katon.
Specifications Technical
Karakteristik Listrik / Optik
| parameter | Nilai Parameter | unit | ngomong | ||
| min | khas | Max | |||
| Range frekuensi | 2 | - | 18 | GHz | |
| Amplitudo Flatness | - | ± 2 | ± 2.5 | dB | |
| Wektu tundha | 0.01 | - | 150 | us | selaras |
| Akurasi Tundha | -5‰ | - | +5‰ | - | |
| selipan mundhut | 0 | 20 | 30 | dB | selaras |
| Input VSWR | - | 1.8 | 2.2 | - | |
| VSWR output | - | 1.8 | 2.2 | - | |
| Impedance | - | 50 | - | Ω | |
| Input 1 dB Kompresi | - | + 13 | + 17 | dBm | |
| Rasio Penolakan Sinyal Palsu | 60 | - | - | dbc | |
| Gambar Noise | - | 50 | 60 | dB | 5us, 25 ℃ |
| Suhu Operasi | -55 | - | + 85 | ℃ | Waca Informasi Pesenan |
| suhu Storage | -55 | - | + 85 | ℃ | |
| Tundha relatif vs Suhu | - | - | 7 | ppm / ℃ | |
| Selipan Mundhut vs Suhu | - | 2 | 4 | % / ℃ | |
Deskripsi Konektor & Power Supply
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| Voltase | NC | GND | + 12V | NC |
| Rating saiki | - | - | 0.3 | - |
| Max Saiki | 1 |

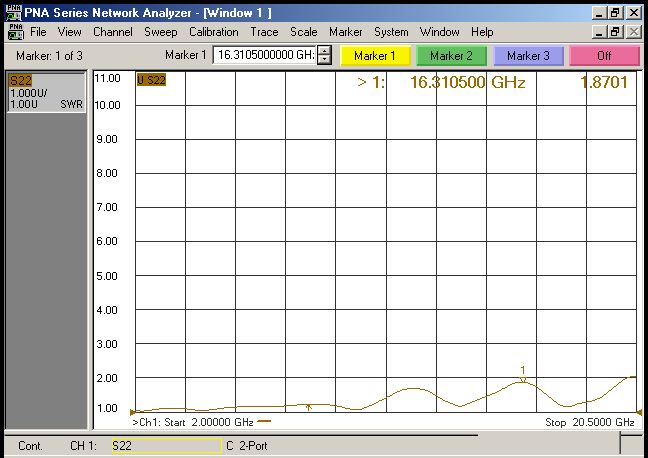

Kurva Respon Khas (25 ℃)
Ukuran lan Pin (Unit: mm[inch])
Konektor RF: SMA-K (Customized)
Konektor DC: DE-9PS (Disesuaikan)
| Koleksi Product | LK-D-SS-18-TG | ngomong | |||||
| Wektu tundha (us) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| Koleksi Product | LK-D-SS-18-TP | ngomong | |||||
| Wektu Tundha (kita) | 8 | 35 | 60 | 80 | 110 | 150 | Kompak |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
nindakake Informasi
| Koleksi Product | Packages | Tingkat Kualitas | Suhu Operasi | suhu Storage |
| LK-D-SS-18-TGI | Standard | Kelas industri | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-18-TGM | Kelas menengah | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-18-TGS | Kelas khusus | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-18-TPI | Kompak | Kelas industri | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-18-TPM | Kelas menengah | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-18-TPS | Kelas khusus | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
aplikasi
Radar testing / kalibrasi
Processing sinyal
perang elektronik
Array antena bertahap
simulasi antena
